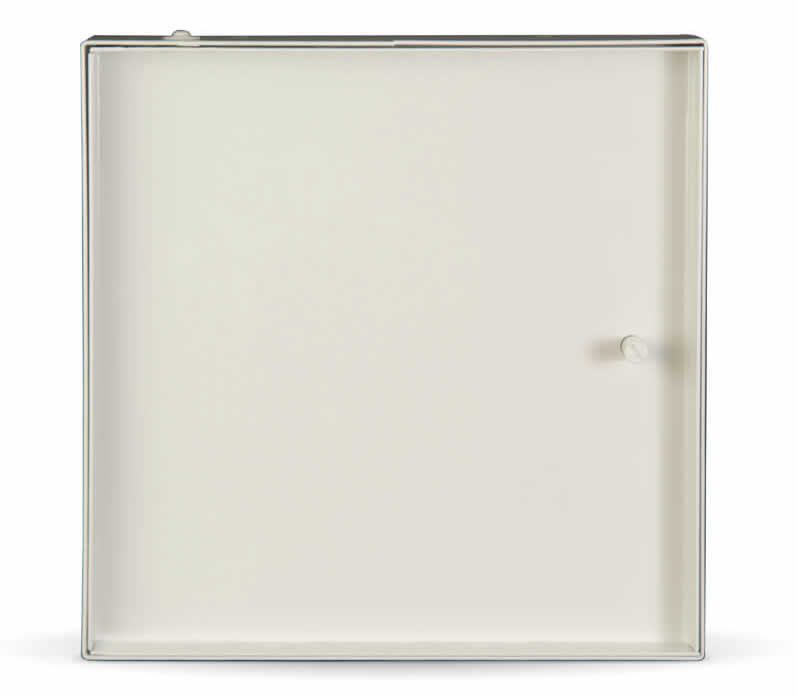

Tile Access Doors

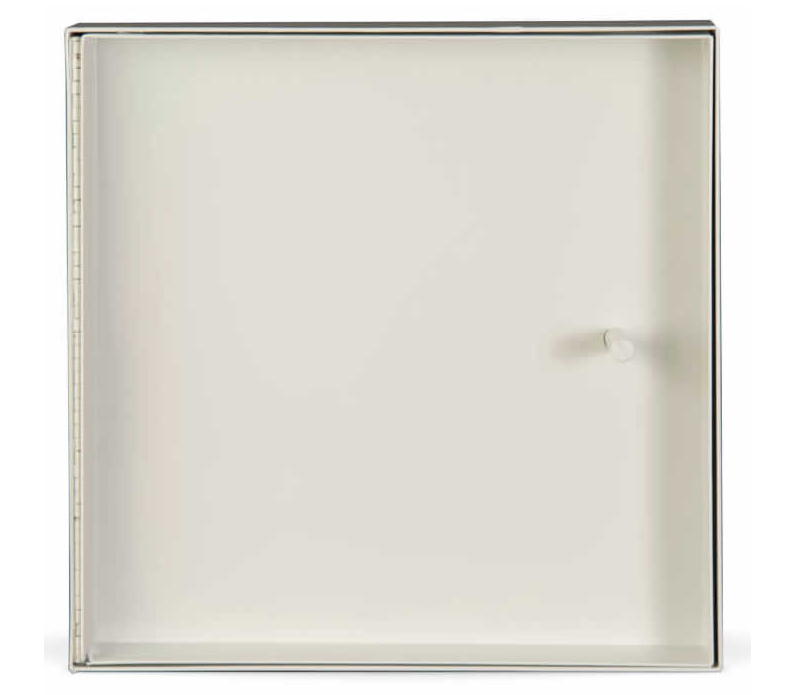

Recessed Fire Resistant Ceiling Door
KATR
Tile Access Doors
Recessed Fire Resistant Ceiling Door
KATR
The KATR is designed to provide access in a suspended drywall ceiling that is part of a fire rated floor-ceiling assembly. The combination of steel and double thickness of drywall maintains the fire resistive qualities of the floor-ceiling assembly.

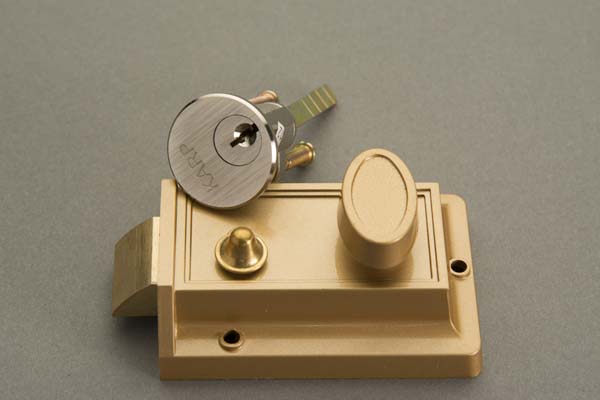

Locks and Latching
This cylinder locking device provides keyed access from the outside of the door. The night latch also has a small thumb latch that allows the spring latch to remain in a retracted position, which allows access at any time.

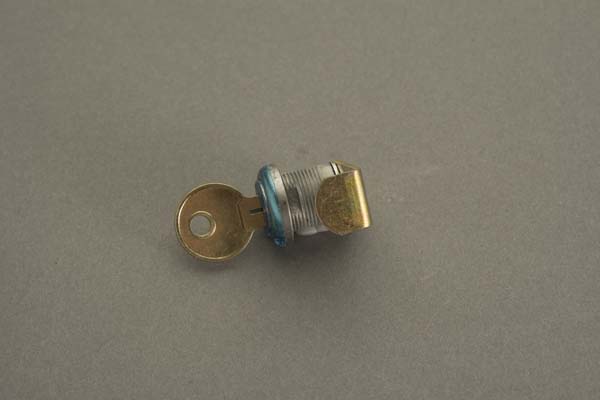

Locks and Latching
This economical cylinder locking device provides keyed access from the outside of the door.
Material
Type 304 stainless steel is well-suited for exterior weathering locations or interior hygienic locations such as hospitals and health care, pharmaceutical plants, research laboratories and food processing facilities. Stainless steel is corrosion resistant, durable and requires very little maintenance. Karp's stainless steel access doors have a No. 4 satin finish, which is a general purpose bright finish with a visible "grain" which prevents mirror reflection.
Additional
Removable doors allow for unobstructed access to wall or ceiling contents.
A 1/16" x 3/8" neoprene gasket can be added to the door providing a tighter seal between the door and door frame, adding protection from exposure to outside elements.
| Door Size H × W (in.) |
Door Size H × W (mm) |
Wall/Ceiling Opening H × W (in.) |
No. of Stud Catches/Latches |
Shipping Wt. (lbs.) |
Shipping Wt. (kg.) |
|---|---|---|---|---|---|
| 12 × 12 | 305 × 305 | 10 1/2 × 10 1/2 | 1 | 6.7 | 3 |
| 18 × 18 | 457 × 457 | 16 1/2 × 16 1/2 | 2 | 11.6 | 5.7 |
| 24 × 24 | 610 × 610 | 22 1/2 × 22 1/2 | 2 | 18.1 | 8.2 |
| 30 × 22 | 762 × 554 | 28 1/2 × 20 1/2 | 2 | 19.5 | 8.9 |

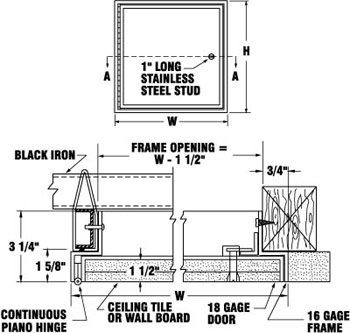

Spec Sheet / CAD Files
Download the architectural specification sheet and CAD drawings for this product.
