Tile Access Doors
Recessed Access Door for Tile
DSC-210
Tile Access Doors
Recessed Access Door for Tile
DSC-210

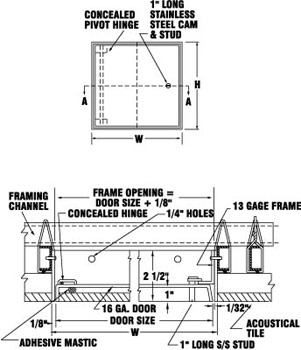

The DSC-210 is designed so that all makes and types of tile thicknesses up to 1″ fit snugly into the recess of the panel. Our unique concealed pivoting bar hinge operates completely out of sight so only the metal thickness of the door and frame is visible.
Locks and Latching

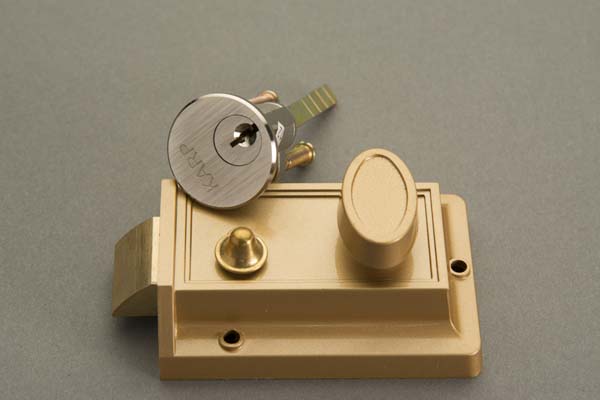

This cylinder locking device provides keyed access from the outside of the door. The night latch also has a small thumb latch that allows the spring latch to remain in a retracted position, which allows access at any time.
Locks and Latching

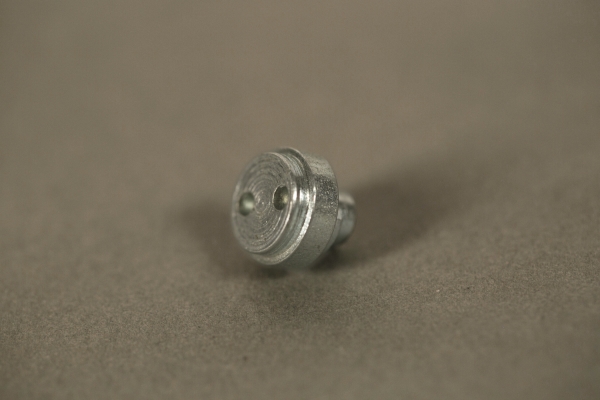

The Spanner Head is an economical tamper-proof latching solution.
Locks and Latching

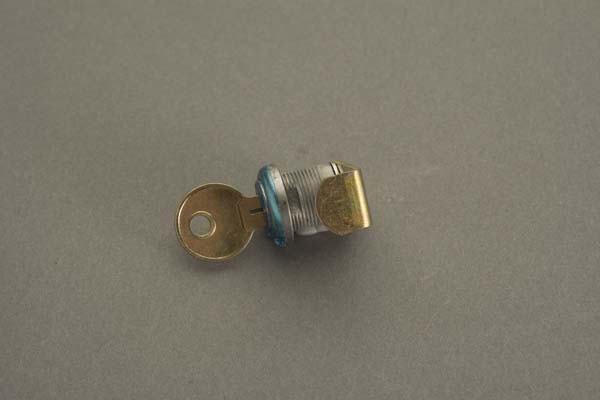

This economical cylinder locking device provides keyed access from the outside of the door.
Material
Type 304 stainless steel is well-suited for exterior weathering locations or interior hygienic locations such as hospitals and health care, pharmaceutical plants, research laboratories and food processing facilities. Stainless steel is corrosion resistant, durable and requires very little maintenance. Karp's stainless steel access doors have a No. 4 satin finish, which is a general purpose bright finish with a visible "grain" which prevents mirror reflection.
Additional
Removable doors allow for unobstructed access to wall or ceiling contents.
To facilitate access and reduce door load, Karp can manufacture access door in a double leaf style.
| Door Size H × W (in.) |
Door Size H × W (mm) |
Wall/Ceiling Opening H × W (in.) |
No. of Stud Catches/Latches |
Shipping Wt. (lbs.) |
Shipping Wt. (kg.) |
|---|---|---|---|---|---|
| 12 × 12 | 305 × 305 | 12 1/8 × 12 1/8 | 1 | 6.7 | 3 |
| 18 × 18 | 457 × 457 | 18 1/8 × 18 1/8 | 2 | 12.4 | 5.6 |
| 24 × 12 | 610 × 305 | 24 1/8 × 14 1/8 | 2 | 10.6 | 4.8 |
| 24 × 24 | 610 × 610 | 24 1/8 × 24 1/8 | 2 | 19.2 | 8.7 |
| 36 × 24 | 914 × 610 | 36 1/8 × 24 1/8 | 2 | 32 | 14.5 |
Spec Sheet / CAD Files
Download the architectural specification sheet and CAD drawings for this product.
