Standard Access Doors
Press-Fit Drywall Access Panel
PF
Standard Access Doors
Press-Fit Drywall Access Panel
PF
The Press-Fit door is a unique lightweight door that installs easily by bending the tabs on the return back to grip the drywall. The frame, return and doorstop are one-piece construction with a beveled frame resulting in an attractive finished look.
Locks and Latching

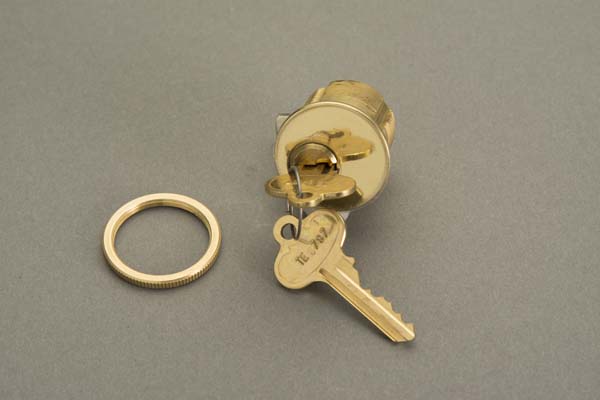

Combined with any lock manufacturer's 1-1/8" mortise cylinder lock, including Best, Corbin Russwin and Schlage, Karp's mortise preparation provides the highest level of security. It is ideally suited for asylums, detention centers or any environment where added durability and security is required.
Locks and Latching

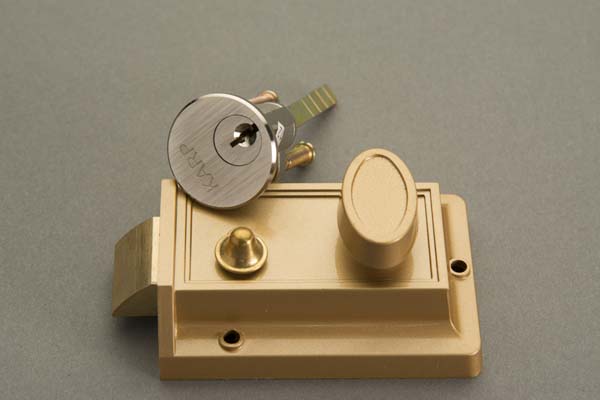

This cylinder locking device provides keyed access from the outside of the door. The night latch also has a small thumb latch that allows the spring latch to remain in a retracted position, which allows access at any time.
Locks and Latching

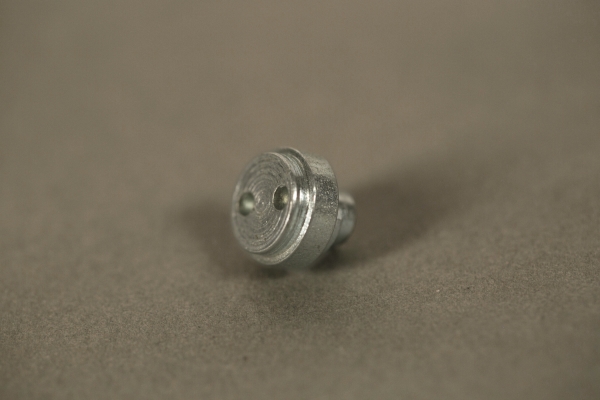

The Spanner Head is an economical tamper-proof latching solution.
Locks and Latching

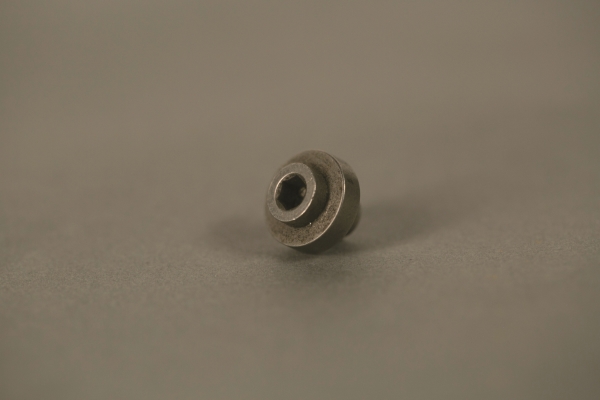

The Allen Head Security Latch is an economical, tamper-resistant latching mechanism that discourages theft, vandalism and unauthorized entry because it cannot be opened without an Allen wrench.
Locks and Latching

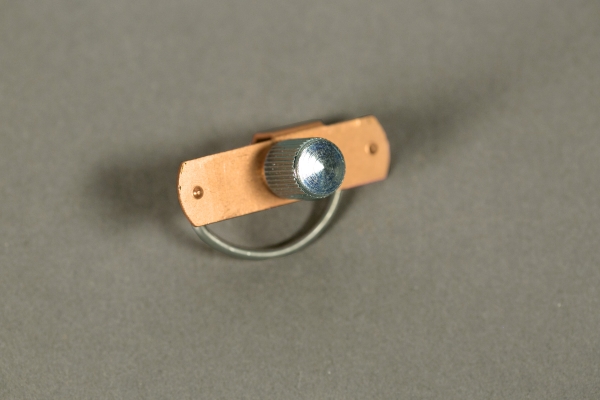

The Knob Turn Latch is finger operated, and is beneficial when tools are not available or desirable for opening and closing the access door.
Locks and Latching

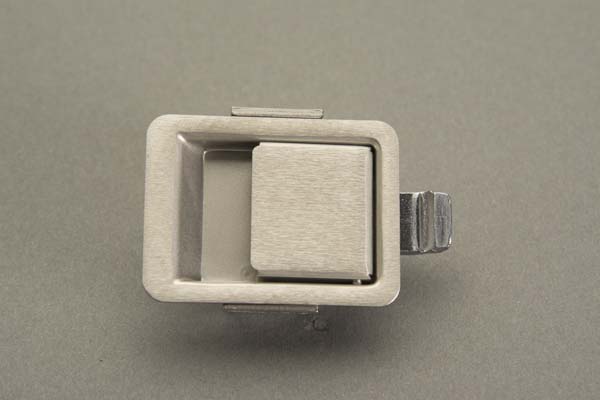

This flush mounted, keyless Paddle Latch has a finger pull that facilitiates opening.
Locks and Latching

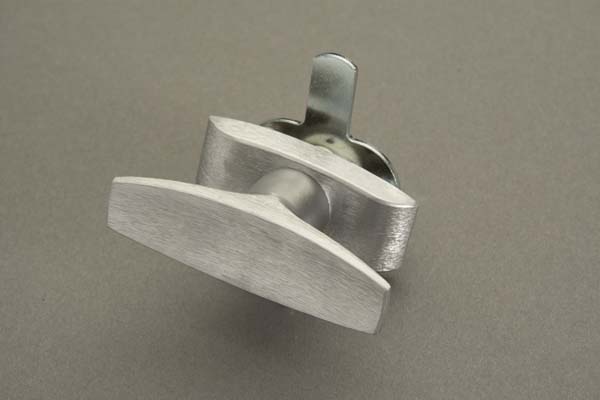

The T-Handle Latch with 90° turn is available with or without a keyed-alike cylinder lock.
Additional
Plexiglass vision panel provides durable, long-lasting and convenient viewing access to wall or ceiling contents.
Karp can integrate louvers into its door design to satisfy any architectural and ventilation requirements.
Locks and Latching
Combined with any lock manufacturer's 1-1/8" mortise cylinder lock, including Best, Corbin Russwin and Schlage, Karp's mortise preparation provides the highest level of security. It is ideally suited for asylums, detention centers or any environment where added durability and security is required.
This cylinder locking device provides keyed access from the outside of the door. The night latch also has a small thumb latch that allows the spring latch to remain in a retracted position, which allows access at any time.
The Spanner Head is an economical tamper-proof latching solution.
The Allen Head Security Latch is an economical, tamper-resistant latching mechanism that discourages theft, vandalism and unauthorized entry because it cannot be opened without an Allen wrench.
The Knob Turn Latch is finger operated, and is beneficial when tools are not available or desirable for opening and closing the access door.
This flush mounted, keyless Paddle Latch has a finger pull that facilitiates opening.
The T-Handle Latch with 90° turn is available with or without a keyed-alike cylinder lock.
Additional
Plexiglass vision panel provides durable, long-lasting and convenient viewing access to wall or ceiling contents.
Karp can integrate louvers into its door design to satisfy any architectural and ventilation requirements.
| Door Size H × W (in.) |
Door Size H × W (mm) |
Wall/Ceiling Opening H × W (in.) |
No. of Stud Catches/Latches |
Shipping Wt. (lbs.) |
Shipping Wt. (kg.) |
|---|---|---|---|---|---|
| 8 × 8 | 203 × 203 | 7 13/16 × 7 13/16 | 1 | 1.5 | 0.7 |
| 12 × 12 | 305 × 305 | 11 13/16 × 11 13/16 | 1 | 2.5 | 1.1 |
| 14 × 14 | 356 × 356 | 13 13/16 × 13 13/16 | 2 | 3 | 1.4 |
| 18 × 18 | 457 × 457 | 17 13/16 × 17 13/16 | 2 | 4.6 | 2.1 |
| 24 × 24 | 610 × 610 | 23 13/16 × 23 13/16 | 3 | 7.4 | 3.4 |
Spec Sheet / CAD Files
Download the architectural specification sheet and CAD drawings for this product.
