Standard Access Doors
Flush Access Doors for Drywall Surfaces
KDW
Standard Access Doors
Flush Access Doors for Drywall Surfaces
KDW
The KDW has a textured frame and bead so drywall joint compound can be applied in sufficient thickness to conceal flange. Prepunched holes in the flange facilitate fastening the flange to framing members with drywall screws.
Locks and Latching

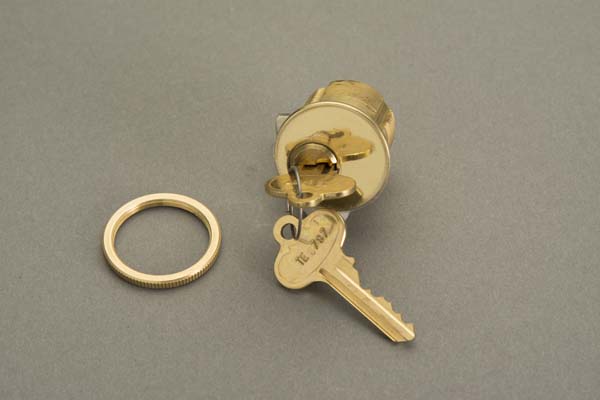

Combined with any lock manufacturer's 1-1/8" mortise cylinder lock, including Best, Corbin Russwin and Schlage, Karp's mortise preparation provides the highest level of security. It is ideally suited for asylums, detention centers or any environment where added durability and security is required.
Locks and Latching

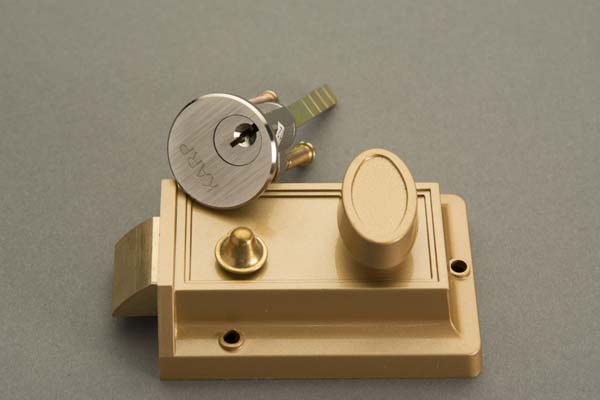

This cylinder locking device provides keyed access from the outside of the door. The night latch also has a small thumb latch that allows the spring latch to remain in a retracted position, which allows access at any time.
Locks and Latching

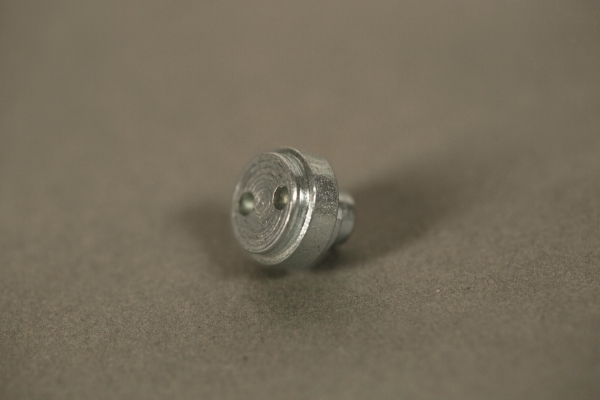

The Spanner Head is an economical tamper-proof latching solution.
Locks and Latching

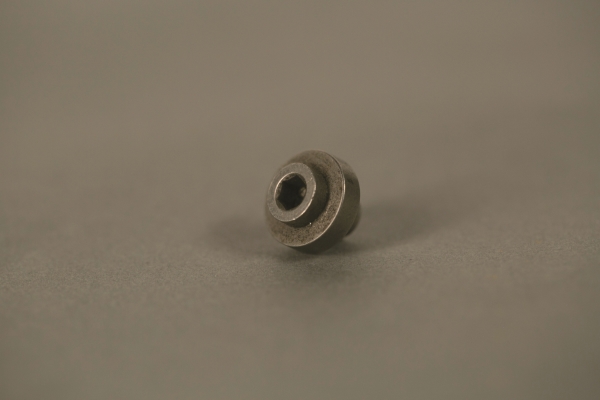

The Allen Head Security Latch is an economical, tamper-resistant latching mechanism that discourages theft, vandalism and unauthorized entry because it cannot be opened without an Allen wrench.
Locks and Latching

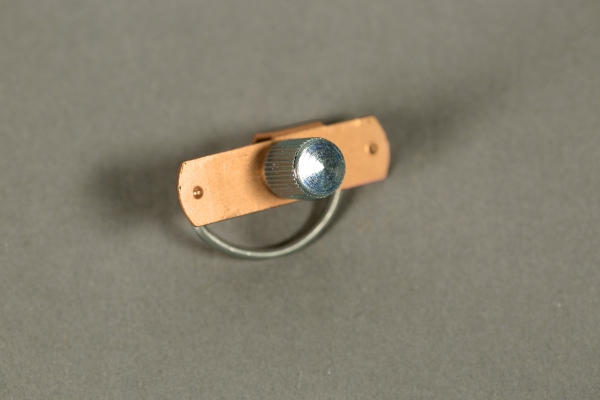

The Knob Turn Latch is finger operated, and is beneficial when tools are not available or desirable for opening and closing the access door.
Locks and Latching

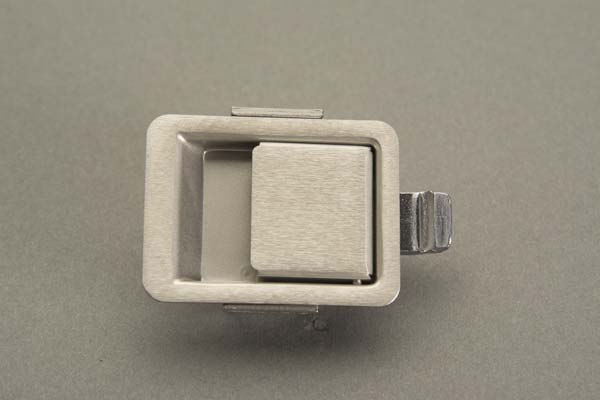

This flush mounted, keyless Paddle Latch has a finger pull that facilitiates opening.
Locks and Latching

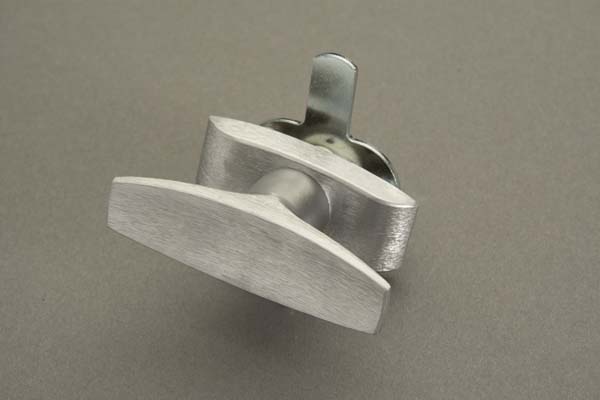

The T-Handle Latch with 90° turn is available with or without a keyed-alike cylinder lock.
Locks and Latching

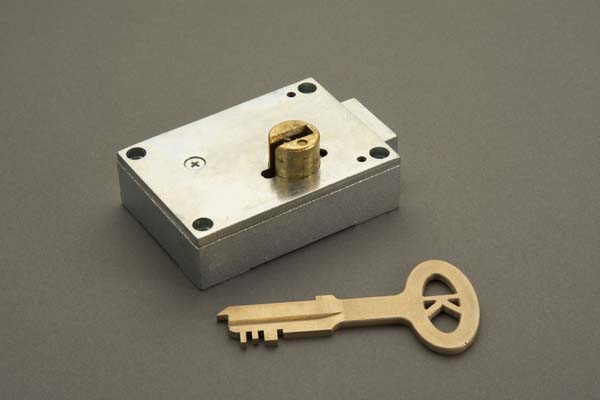

Combined with any lock manufacturer's detention lock, Karp's Detention Lock preparation provides the maximum level of security. It is ideally suited for asylums, detention centers or any environment where added durability and security is required.
Locks and Latching

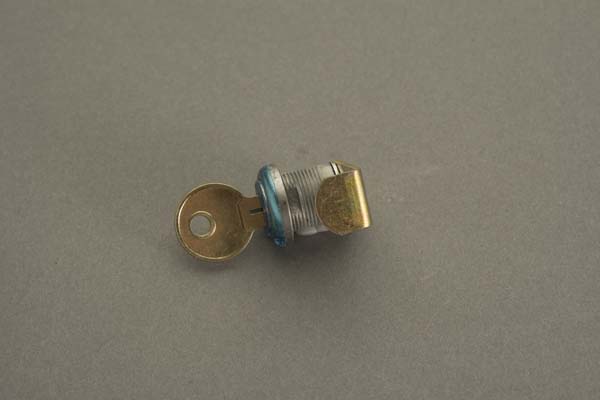

This economical cylinder locking device provides keyed access from the outside of the door.
Material
Type 304 stainless steel is well-suited for exterior weathering locations or interior hygienic locations such as hospitals and health care, pharmaceutical plants, research laboratories and food processing facilities. Stainless steel is corrosion resistant, durable and requires very little maintenance. Karp's stainless steel access doors have a No. 4 satin finish, which is a general purpose bright finish with a visible "grain" which prevents mirror reflection.
Aluminum is ideal for any installations or evironments that require a strong, lightweight and rust-resistant access door.
Additional
Plexiglass vision panel provides durable, long-lasting and convenient viewing access to wall or ceiling contents.
Karp can integrate louvers into its door design to satisfy any architectural and ventilation requirements.
Safety Chains are ideally suited for large access door ceiling installations. Safety Chains provide additional assurance by securing the door when it is unattended.
To facilitate access and reduce door load, Karp can manufacture access door in a double leaf style.
Masonry Straps secure the installation of Karp's doors in masonry applications.
A 1/16" x 3/8" neoprene gasket can be added to the door providing a tighter seal between the door and door frame, adding protection from exposure to outside elements.
| Door Size H × W (in.) |
Door Size H × W (mm) |
Wall/Ceiling Opening H × W (in.) |
No. of Stud Catches/Latches |
Shipping Wt. (lbs.) |
Shipping Wt. (kg.) |
|---|---|---|---|---|---|
| 6 × 6 | 152 × 152 | 6 3/8 × 6 3/8 | 1 | 1.8 | 0.8 |
| 8 × 8 | 203 × 203 | 8 3/8 × 8 3/8 | 1 | 2.4 | 1.1 |
| 10 × 10 | 254 × 254 | 10 3/8 × 10 3/8 | 1 | 3.3 | 1.5 |
| 12 × 12 | 305 × 305 | 12 3/8 × 12 3/8 | 1 | 5.8 | 2.6 |
| 14 × 14 | 356 × 356 | 14 3/8 × 14 3/8 | 2 | 6.5 | 3 |
| 16 × 16 | 406 × 406 | 16 3/8 × 16 3/8 | 2 | 8.8 | 4 |
| 18 × 18 | 457 × 457 | 18 3/8 × 18 3/8 | 2 | 11.1 | 5 |
| 22 × 22 | 554 × 554 | 22 3/8 × 22 3/8 | 4 | 15.3 | 7 |
| 24 × 24 | 610 × 610 | 24 3/8 × 24 3/8 | 5 | 17.2 | 7.8 |
| 36 × 24 | 914 × 610 | 36 3/8 × 24 3/8 | 5 | 25.9 | 11.8 |
Spec Sheet / CAD Files
Download the architectural specification sheet and CAD drawings for this product.
