Plaster Access Door

Recessed Access Door for Plastered Surfaces

DSC-210PL

Recessed Access Door for Plastered Surfaces
Plaster Access Door

Recessed Access Door for Plastered Surfaces

DSC-210PL

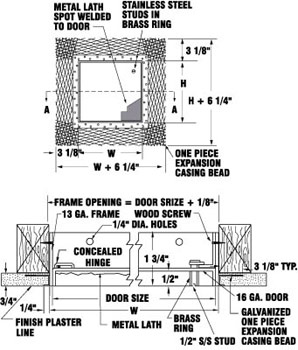

The DSC-210PL is recessed 1/2″ and lined with self-furring metal lath allowing plaster of surrounding surfaces to continue without interruption over face of door.

Size:

Add the product to the quote list, Our team will review your list and connect you with the nearest authorized Karp distributor for pricing and availability.

Locks and Latching

Locks and Latching

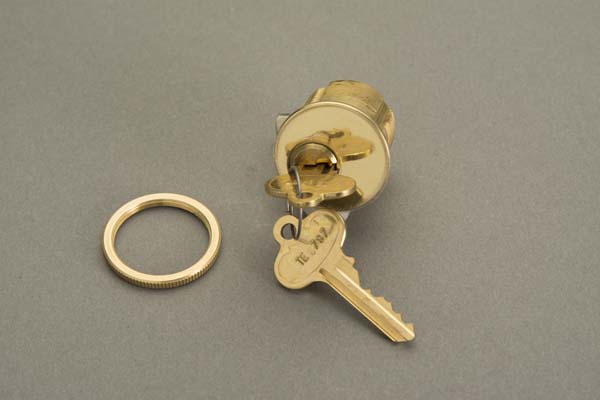

Combined with any lock manufacturer's 1-1/8" mortise cylinder lock, including Best, Corbin Russwin and Schlage, Karp's mortise preparation provides the highest level of security. It is ideally suited for asylums, detention centers or any environment where added durability and security is required.
Locks and Latching

Locks and Latching

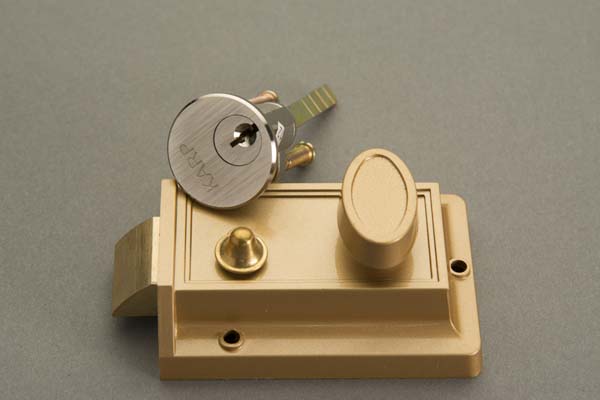

This cylinder locking device provides keyed access from the outside of the door. The night latch also has a small thumb latch that allows the spring latch to remain in a retracted position, which allows access at any time.
Locks and Latching

Locks and Latching

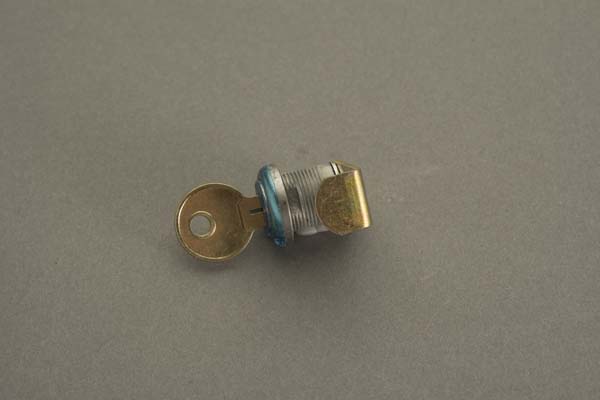

This economical cylinder locking device provides keyed access from the outside of the door.

Material

Type 304 stainless steel is well-suited for exterior weathering locations or interior hygienic locations such as hospitals and health care, pharmaceutical plants, research laboratories and food processing facilities. Stainless steel is corrosion resistant, durable and requires very little maintenance. Karp's stainless steel access doors have a No. 4 satin finish, which is a general purpose bright finish with a visible "grain" which prevents mirror reflection.

Additional

Removable doors allow for unobstructed access to wall or ceiling contents. To facilitate access and reduce door load, Karp can manufacture access door in a double leaf style.
Door Size
H × W (in.)
Door Size
H × W (mm)
Wall/Ceiling Opening
H × W (in.)
No. of Stud
Catches/Latches
Shipping Wt.
(lbs.)
Shipping Wt.
(kg.)
12 × 12 305 × 305 12 1/8 × 12 1/8 1 6.7 3
18 × 18 457 × 457 18 1/8 × 18 1/8 2 12.4 5.6
24 × 12 610 × 305 24 1/8 × 12 1/8 2 10.6 4.8
24 × 24 610 × 610 24 1/8 × 24 1/8 2 19.2 8.7
36 × 24 914 × 610 36 1/8 × 24 1/8 3 32 14.5

Spec Sheet / CAD Files

Download the architectural specification sheet and CAD drawings for this product.
