Concealed Access Doors
Recessed Access Door for Drywall Surfaces
RDW
Concealed Access Doors
Recessed Access Door for Drywall Surfaces
RDW
The face of the door on the RDW is recessed to receive a panel of drywall to provide a dry wall finish on the door to match texture of surrounding drywall. The door frame includes a drywall bead so that drywall cement can be applied to conceal flange.
Locks and Latching

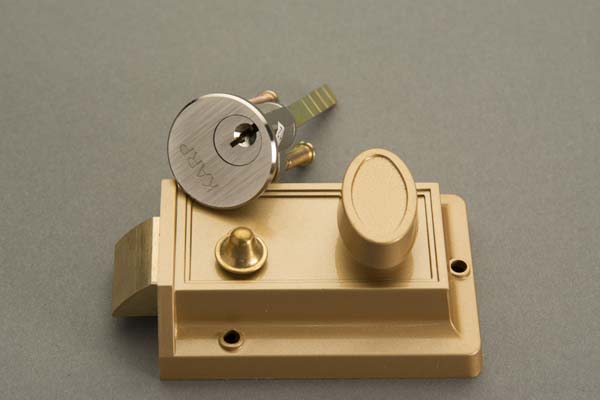

This cylinder locking device provides keyed access from the outside of the door. The night latch also has a small thumb latch that allows the spring latch to remain in a retracted position, which allows access at any time.
Locks and Latching
This economical cylinder locking device provides keyed access from the outside of the door.
Material
Type 304 stainless steel is well-suited for exterior weathering locations or interior hygienic locations such as hospitals and health care, pharmaceutical plants, research laboratories and food processing facilities. Stainless steel is corrosion resistant, durable and requires very little maintenance. Karp's stainless steel access doors have a No. 4 satin finish, which is a general purpose bright finish with a visible "grain" which prevents mirror reflection.
Additional
Removable doors allow for unobstructed access to wall or ceiling contents.
To facilitate access and reduce door load, Karp can manufacture any size access door in a double leaf style.
A 1/16" x 3/8" neoprene gasket can be added to the door providing a tighter seal between the door and door frame, adding protection from exposure to outside elements.
| Door Size H × W (in.) |
Door Size H × W (mm) |
Wall/Ceiling Opening H × W (in.) |
No. of Stud Catches/Latches |
Shipping Wt. (lbs.) |
Shipping Wt. (kg.) |
|---|---|---|---|---|---|
| 12 × 12 | 305 × 305 | 12 1/8 × 12 1/8 | 1 | 7.4 | 3.4 |
| 18 × 18 | 457 × 457 | 18 1/8 × 18 1/8 | 2 | 12.8 | 5.8 |
| 24 × 12 | 610 × 305 | 24 1/8 × 14 1/8 | 2 | 12.5 | 5.7 |
| 24 × 24 | 610 × 610 | 24 1/8 × 24 1/8 | 2 | 19.4 | 8.8 |
| 24 × 24 | 914 × 610 | 36 1/8 × 24 1/8 | 3 | 29 | 13.2 |
Spec Sheet / CAD Files
Download the architectural specification sheet and CAD drawings for this product.
