Duct Doors
Hinge and CAM Latch Duct Door
KHD
Duct Doors
Hinge and CAM Latch Duct Door
KHD

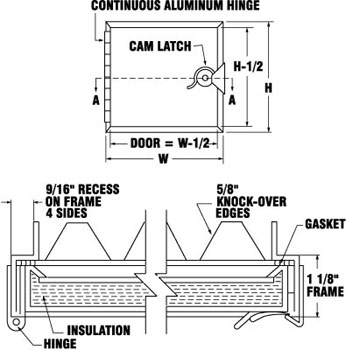

Duct doors (KHD) are furnished with hinges and cam latch. Frames are easily attached to duct with notched knockover tabs.
| Door Size H × W (in.) |
Door Size H × W (mm) |
Wall/Ceiling Opening H × W (in.) |
No. of Stud Catches/Latches |
Shipping Wt. (lbs.) |
Shipping Wt. (kg.) |
|---|---|---|---|---|---|
| 6 × 6 | 152 × 152 | 4 3/4 × 4 3/4 | 1 | 1.1 | 0.5 |
| 8 × 8 | 203 × 203 | 6 3/4 × 6 3/4 | 1 | 1.8 | 0.8 |
| 10 × 10 | 254 × 254 | 8 3/4 × 8 3/4 | 1 | 2.4 | 1.1 |
| 12 × 12 | 305 × 305 | 10 3/4 × 10 3/4 | 1 | 3.2 | 1.5 |
| 14 × 14 | 356 × 356 | 12 3/4 × 12 3/4 | 2 | 4.9 | 2.2 |
| 16 × 16 | 406 × 406 | 14 3/4 × 14 3/4 | 2 | 5.5 | 2.5 |
| 18 × 18 | 457 × 457 | 16 3/4 × 16 3/4 | 2 | 6.6 | 3 |
| 24 × 24 | 610 × 610 | 22 3/4 × 22 3/4 | 2 | 11 | 5 |
Spec Sheet / CAD Files
Download the architectural specification sheet and CAD drawings for this product.
